The Smart Self-Healing Visco Elastic Solid Coating

Scenario

The most prevalent time-dependent threat to a pipeline is corrosion. Corrosion can occur underground and above ground substrates in the pipelines serving the oil and gas, utility and water industries. The damage can occur  both externally and internally. Corrosion damage leading to leaks and ruptures increases pipeline operating risks associated with health, safety, the environment, product deliverability. This 'oversight' can result in regulatory actions and litigation against pipeline operators.

One major area that becomes a concern is the pipeline field joint. A field joint is a place where two pipeline sections meet and are welded together. Pipeline joints are unavoidable as the very nature of pipelines is the interconnection nature. Pipelines extend for long distances and in various directions. Therefore, there are bound to many field joints where the pipeline sections are joined and welded together. Herein exists the treat of corrosion arising if field joints are not well covered or insulated. Proper field joint anti-corrosive and trusted liquid coatings such as epoxies, urethanes, heat shrinkable sleeves and sometimes fusion-bonded epoxy are required for the field joints.

Remedy

There are new elastic coating technologies that are able to give longer life by virtue of their fundamental chemical and physical characteristics. Armed with an intrinsic chemical inertness, this allows these films to shield surfaces from chemical attacks of many kinds. And their exceptional hardness provides unprecedented protection against erosion and wear. All of these features also serve as powerful  corrosion resistance barrier to stop corrosion attack.

With its unique visco elastic solid characteristic provide self-healing physical properties, client has no more concern and need not to repair even found a small pinhole coating damage during or after pipeline backfill. This unique self-healing viso elastic solid coating will self cover the pinhole automatically by its own nature.

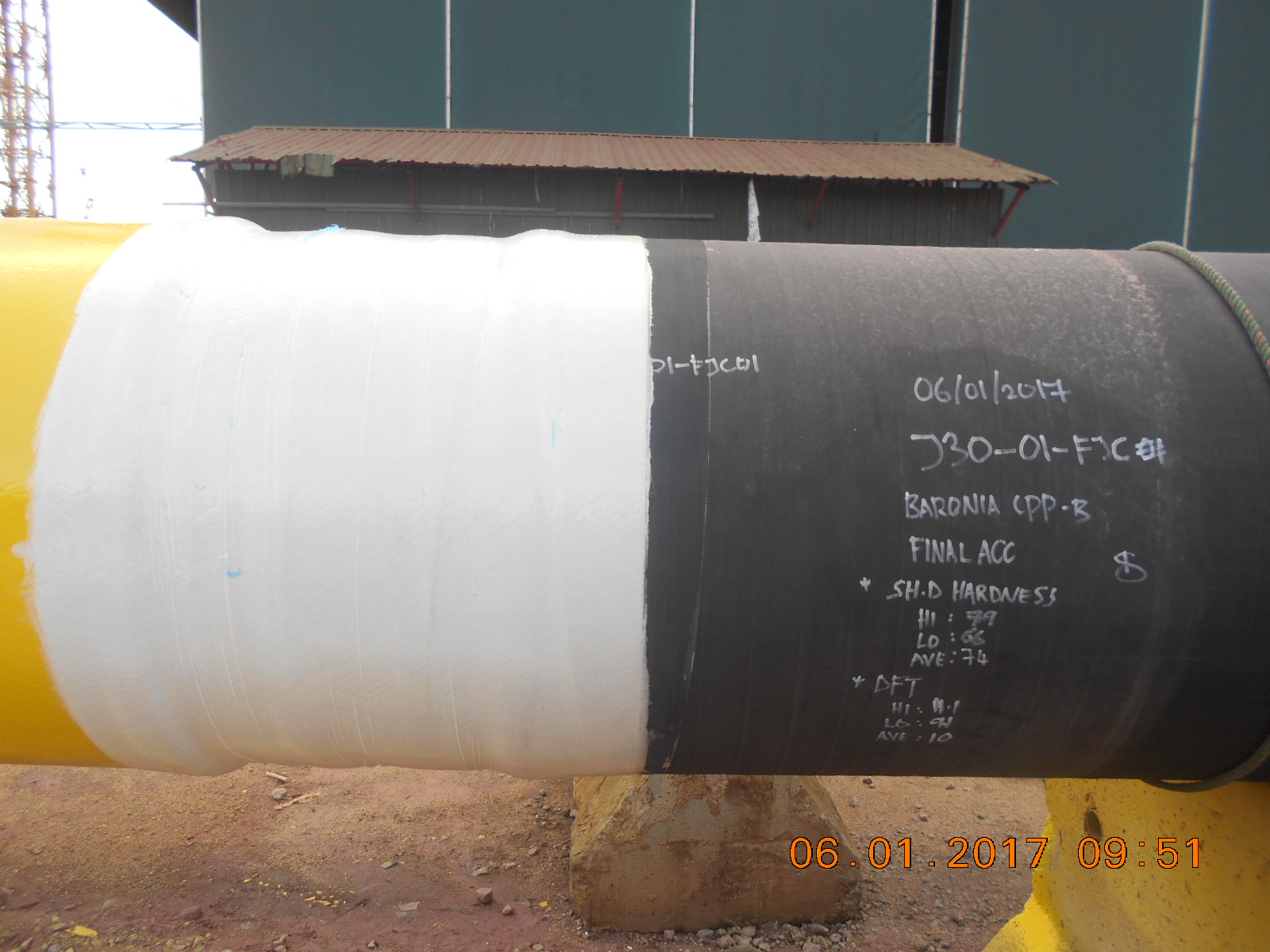

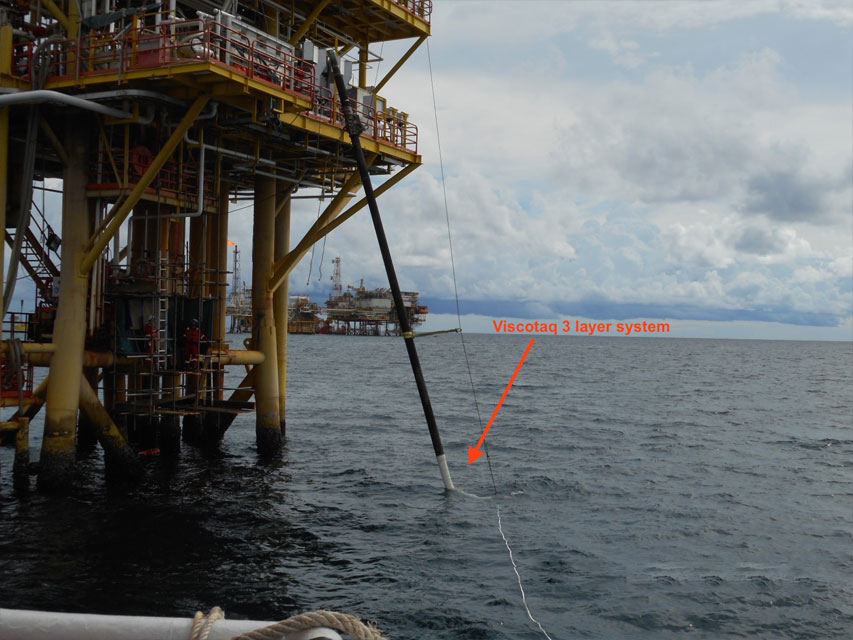

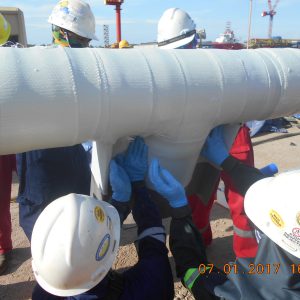

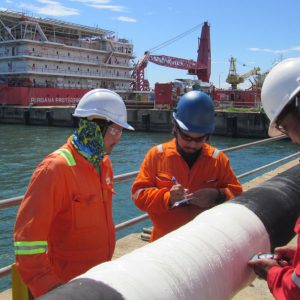

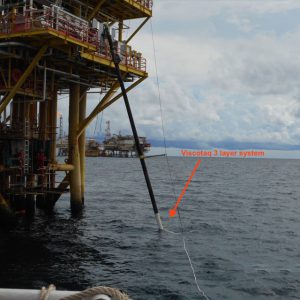

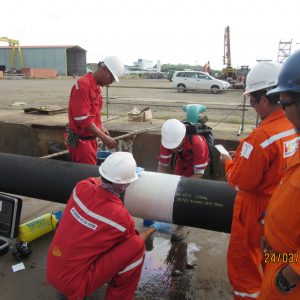

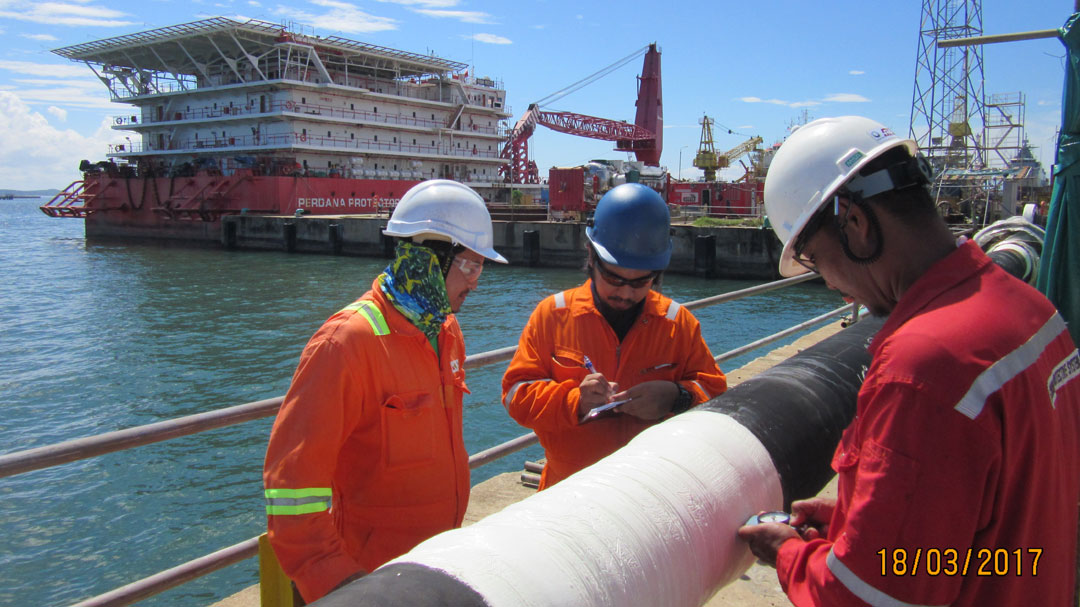

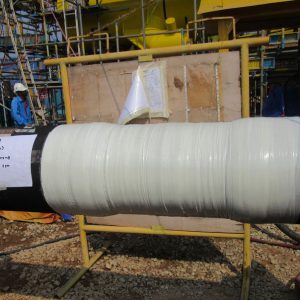

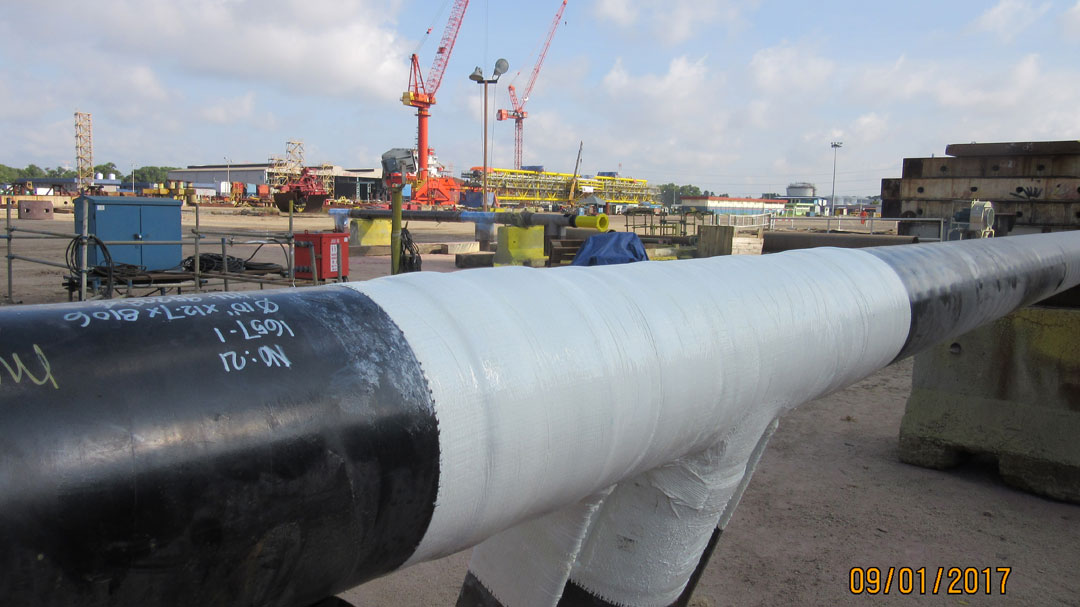

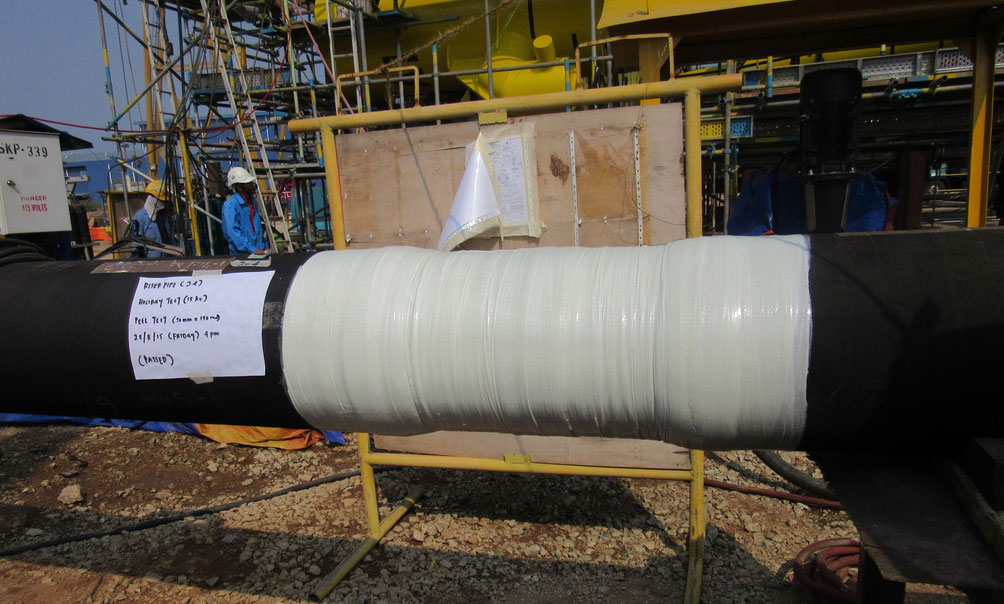

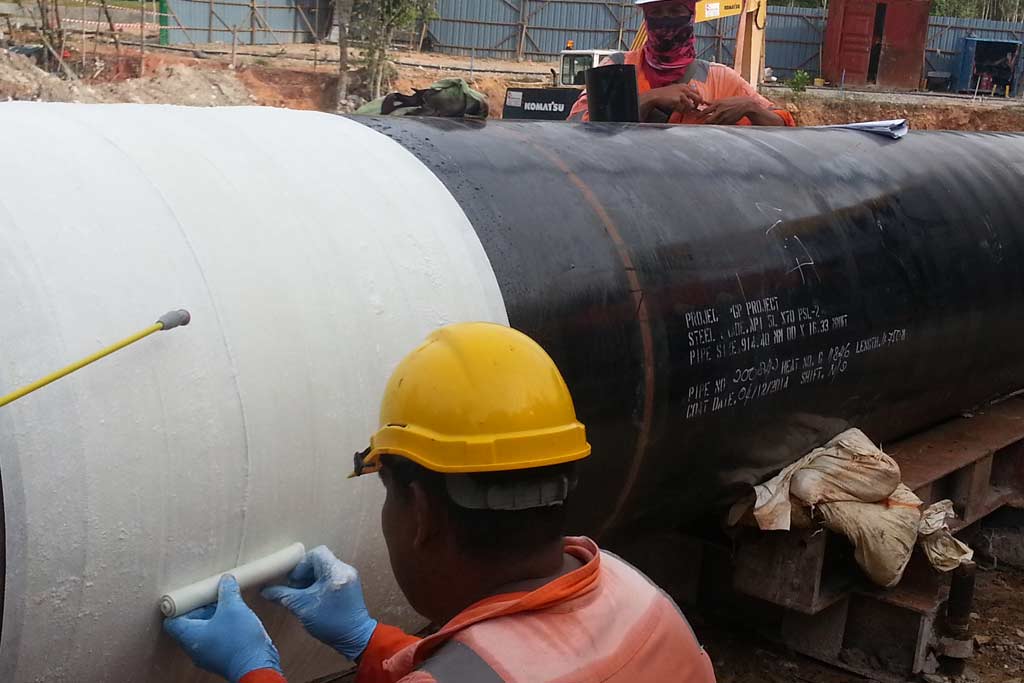

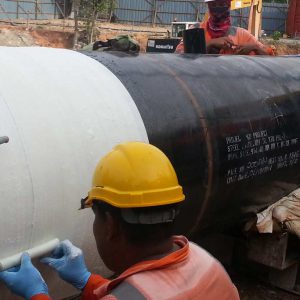

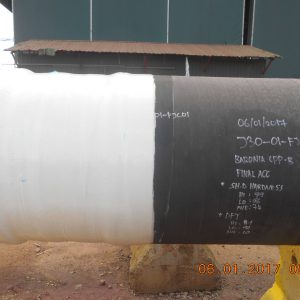

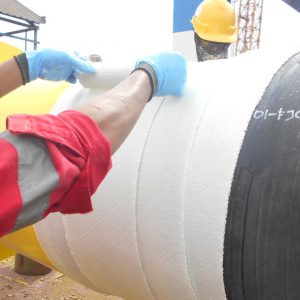

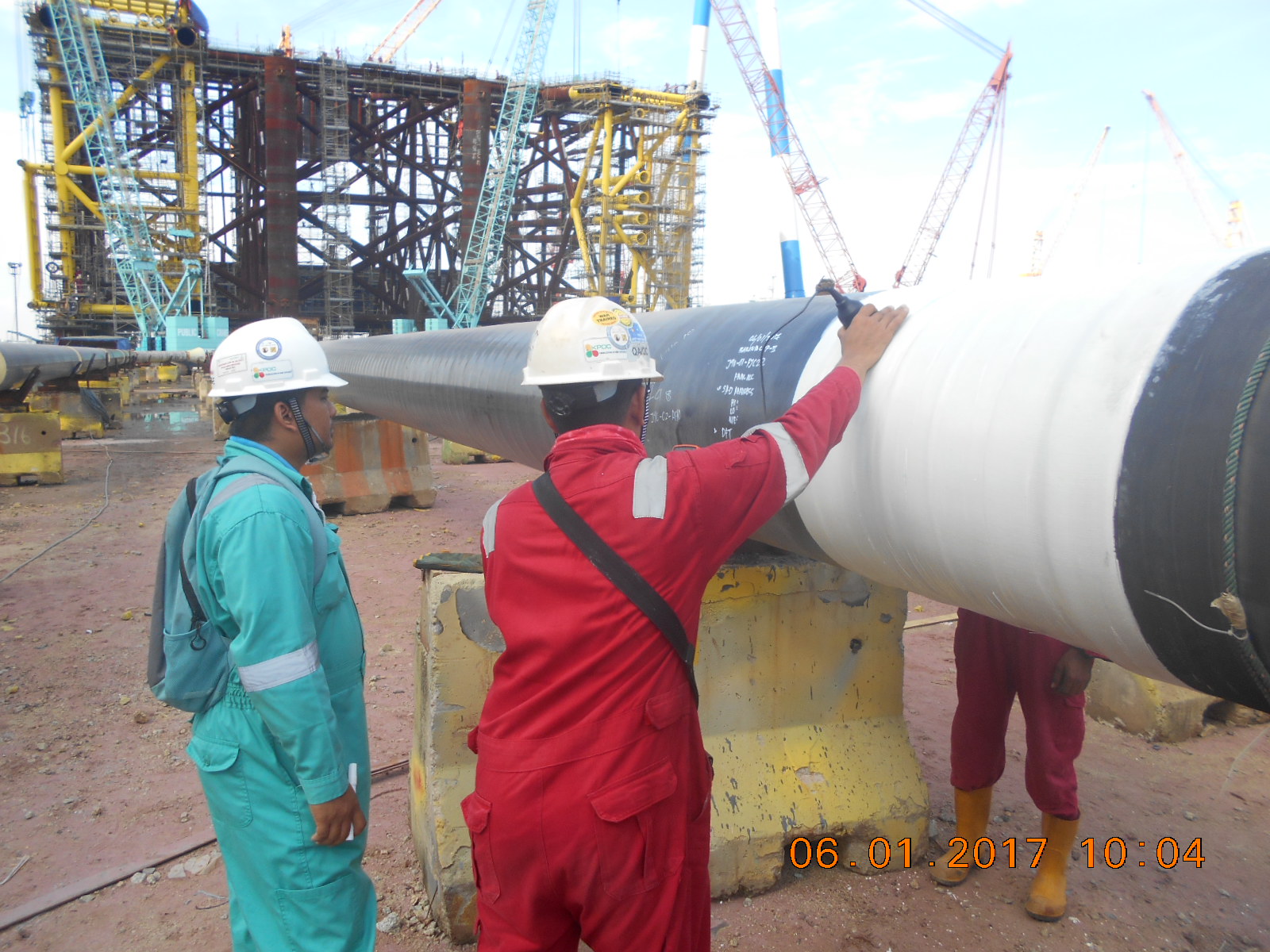

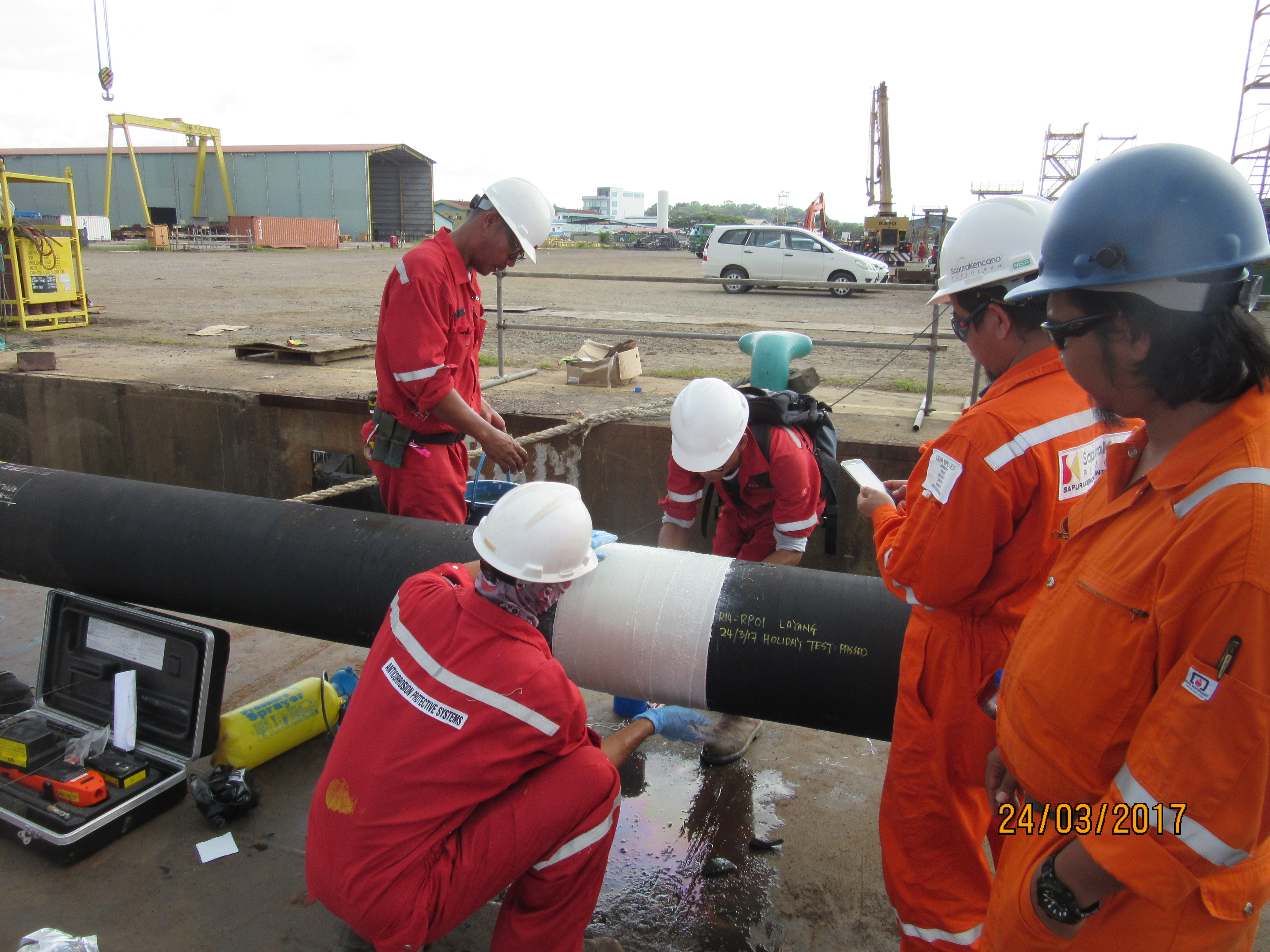

VISCOTAQ – PU-COMPOSITE WRAP

p01
p02
p203
rgt2-10
p202
p03
p05
p201
p06
p07
p04
Solutions

VISCOTAQ - is a worldwide patented viscous elastic pipeline technology coating that is used for corrosion prevention of pipelines, storage tanks, soil to air transitions, above ground flanges, pipe crossings and in the ditch applications. They offer unique waterproofing solutions halting infiltration of water at cross countries pipelines, pipe casings, buildings, vaults, storm drains, sewer line and other. Viscotaq products differentiate from any other product as being a unique synthetic viscous-elastic amorphous a-polar poly-olefin for the protection against corrosion of underground and above ground substrates in the petrochemical industry, utility and water industry risingupto +100° C/+212° F.

Products

Viscowrap ST - a viscous-elastic self-healing wrap coating

Protection of under- and above ground substrates against corrosion. VISCOWRAP-ST can be used in environments or on substrates with an ambient or surface temperature up to -45° to +81° C/+160° F.

Viscowrap HT- a viscous-elastic self-healing wrap coating

Protection of under- and above ground substrates against corrosion. The material can be used in environments or on substrates with an ambient or surface temperature up to -35° to +100° C/+212° F. and is compliant with ISO 21809-3

Viscopaste- a viscous-elastic self-healing paste

Protection of under and above ground substrates against corrosion. The material can be used in environments or on substrates with an ambient or surface temperature up to +100° C/+160° F.



EZ Wrap - a viscous-elastic self-healing wrap coating

Protection of under and above ground substrates against corrosion and water filtration. The material can be used in environments or on substrates with an ambient or surface temperature up to +65° C/+149° F. Originally developed for the protection of tank chimes where combined with viscosealant.

Viscotaq PE - outer wrap

Used for the mechanical protection of VISCOTAQ material up to a temperature of +85° C/+185° F.

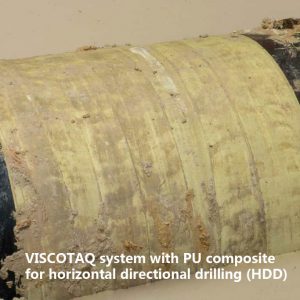

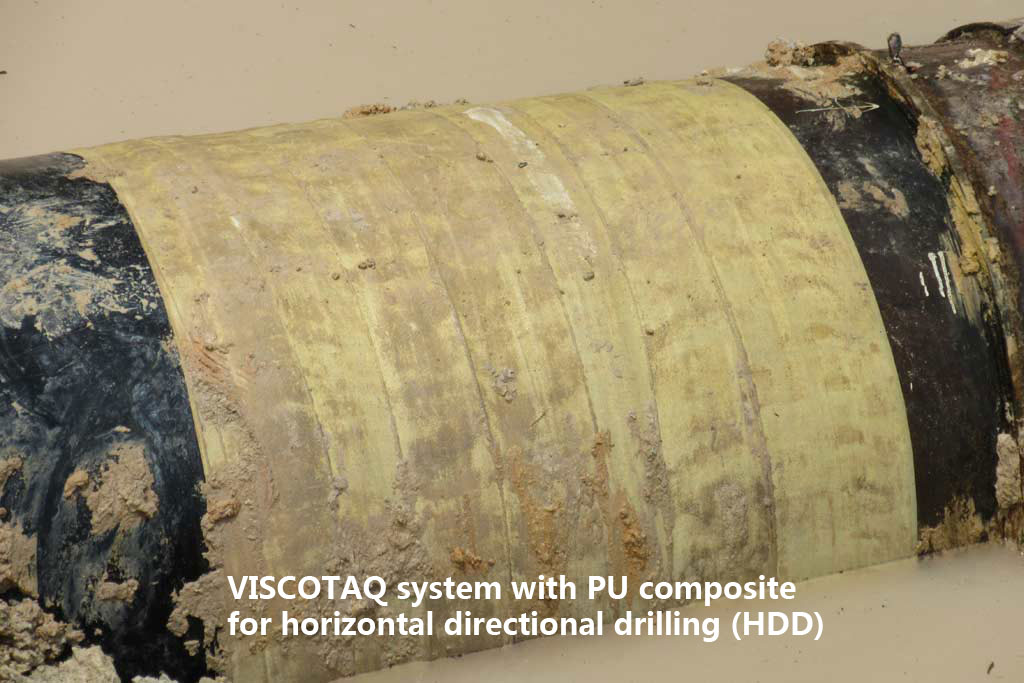

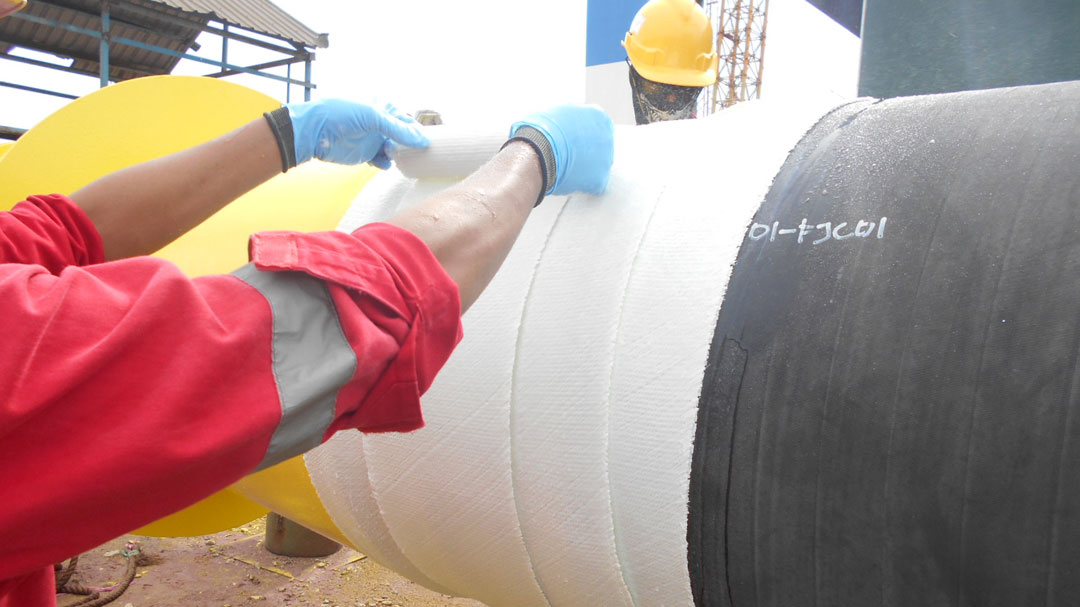

PU Composite - a Moisture Cured Polyurethane Fiberglass coating

Used for situations at higher mechanical impact or higher temperatures up to +100° C/ +212 ° F are expected.

Viscosealant - a viscous-elastic corrosion preventive and sealing paste

Sealing all type of openings and holes against the filtration of moisture and gases. Protect your flanges bolt and nuts from corrosion attack with bolt caps and viscosealant.

Viscotaq, has many more products, a wider range of solutions, view by clicking the below button



Various Features and Benefits of Viscotaq Products

  • Bonds on Van Der Waals bonding Principal
  • Unrivalled Technology
  • Self-healing
  • Permanent Wetting Characteristics
  • Viscous-elastic amorphous a-polar poly-olefin
  • 100% inert and stable, safe and non-hazardous
  • Lifetime pliable state
  • ISO 9001 Standards
  • Temperature rates up to +100°C/+202°F
  • Glass transition temperature < -40 °C/-40 °F)
  • Forgiving on surface preparation (minimum commercial wire brush)
  • Cohesive Fracture (peel test)
  • 100% inert formulation, no solvents, no primers
  • Virtually impermeable to moisture
  • No problems with salts or osmosis
  • Extremely low Cathodic disbondment values (0-3mm/0-0,12" to ASTM G8)
  • Excellent dripping/sliding resistance due to high yield point
  • Weather resistant/UV resistant
  • Easy failure-free application
  • Protection of shaped and unshaped substrates
  • Elimination of salts and osmosis aggressive soils, shear stress problems

Situational Context

The proper application of fusion bonds, coatings and wrap healing in the field on a pipeline construction project, either on girth welds or various required repairs as pipe casing, buildings, vaults, storm drains, sewer lines is an essential element to the successful long-term integrity of a pipeline. Hence reliance on a trusted, reliant, durable and coatings must become conformative.
