The Titan™ 118 and 218 structural repair system is comprised of unique, uni-axial or bi-axial carbon fiber fabric, saturated with NRI's proprietary epoxy system, Titan™-Saturant Epoxy. The Titan™ 118 carbon fiber is uni-directional fabric with the primary, continuous fibers oriented in the 0° direction while the Titan™ 218 carbon fiber is oriented in the 0° / 90° directions with the 0° direction being the primary, continuous fibers. The Titan™-Saturant Epoxy system is a two-part, 100% solid epoxy system designed for use in a wide variety of environments possessing excellent chemical resistance and high temperature ratings for use in industrial buildings. The development of this system was designed to conform to ACI440 design guide.

TYPICAL APPLICATIONS
♦ Structural reinforcement
♦ Containment and shear reinforcement

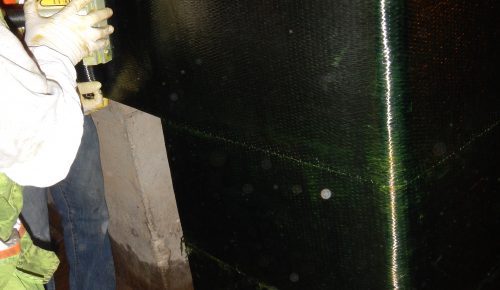

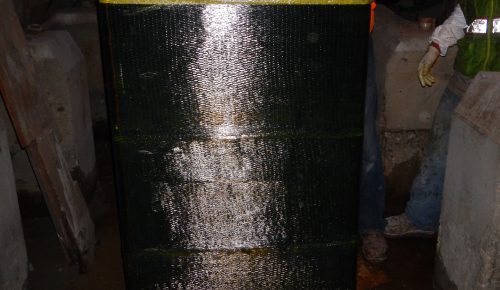

♦ Bridge column repair
♦ Pile repair
♦ Seismic retrofitting

BENEFITS
♦ Long working time even in hot environments
♦ Properties retained even at high temperature use
♦ Solvent free, no VOC's
♦ Applicable in damp and wet environments
♦ High strength and light weight
♦ Manufactured in ISO 9001 certified facility
♦ Full factory engineering consultation and support, ensuring safe and successful repairs
